API client class representation

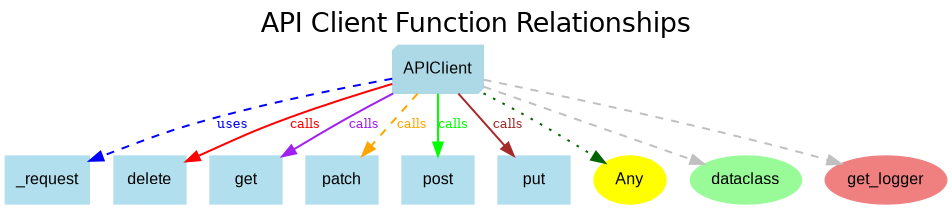

Fancy graphviz API client class representation

digraph G { label="API Client Function Relationships"; fontsize=20; labelloc=top; fontname="Helvetica"; // Define the style for all nodes node [shape=box, style=filled, color=lightblue2, fontname="Arial", fontsize=12]; // Define the style for edges edge [color=darkgreen, style=dashed, penwidth=1.5]; // APIClient node with 3D box style "APIClient" [label="APIClient", shape=box3d, color=lightblue]; // Edges from APIClient to its methods "APIClient" -> "_request" [label="uses", color="blue", fontcolor="blue", fontsize=10]; "APIClient" -> "delete" [label="calls", color="red", fontcolor="red", fontsize=10, style="solid"]; "APIClient" -> "get" [label="calls", color="purple", fontcolor="purple", fontsize=10, style="solid"]; "APIClient" -> "patch" [label="calls", color="orange", fontcolor="orange", fontsize=10, style="dashed"]; "APIClient" -> "post" [label="calls", color="green", fontcolor="green", fontsize=10, style="solid"]; "APIClient" -> "put" [label="calls", color="brown", fontcolor="brown", fontsize=10, style="solid"]; // Additional nodes "Any" [label="Any", shape=ellipse, color=yellow]; "dataclass" [label="dataclass", shape=ellipse, color=palegreen]; "get_logger" [label="get_logger", shape=ellipse, color=lightcoral]; // Define relationships to external dependencies "APIClient" -> "Any" [style=dotted]; "APIClient" -> "dataclass" [style=dashed, color="gray"]; "APIClient" -> "get_logger" [style=dashed, color="gray"]; }
